High Refresh Rate Waterproof Commercial High Resolution Complete Poster Full Color Smart Rollable Led Poster P2.5
- Pixel Pitch:2.5mm
- Brightness:800-1000 cd/m2
- Refresh frepuency:1920-3300 HZ/S
- Cabinet Resolution:256 dot * 256 dt
- Product description: High Refresh Rate Waterproof Commercial High Resolution Complete Poster Full Color Smart Rollable Led Poster P2.5 - Buy Poster P2.5,Top Led Display,External Led Display Product on Kxdisplay.com"/>
Product Details
|
Item
|
Indoor P2.5
|
Indoor P4
|
Indoor P5
|
||
|
Module
|
Panel Dimension
|
320mm(W) * 160mm(H)
|
320mm(W) * 160mm(H)
|
320mm(W) * 160mm(H)
|
|
|
Pixel pitch
|
2.5mm
|
4mm
|
5mm
|
||
|
Pixel Density
|
160000 dot/m2
|
62500 dot/m2
|
40000 dot/m2
|
||
|
Pixel configuration
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
||
|
LED specification
|
SMD2121
|
SMD2121
|
SMD3528 / 2121
|
||
|
Pixel resolution
|
128 dot * 64 dot
|
80 dot * 40 dot
|
64 dot * 32 dot
|
||
|
Average power
|
30W
|
26W
|
15W/24W
|
||
|
Panel weight
|
0.39KG
|
0.3KG
|
0.33KG
|
||
|

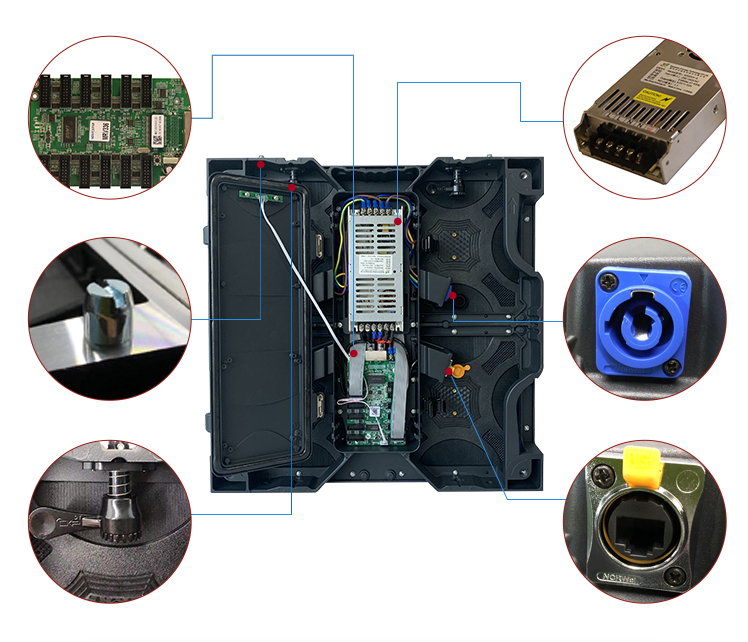

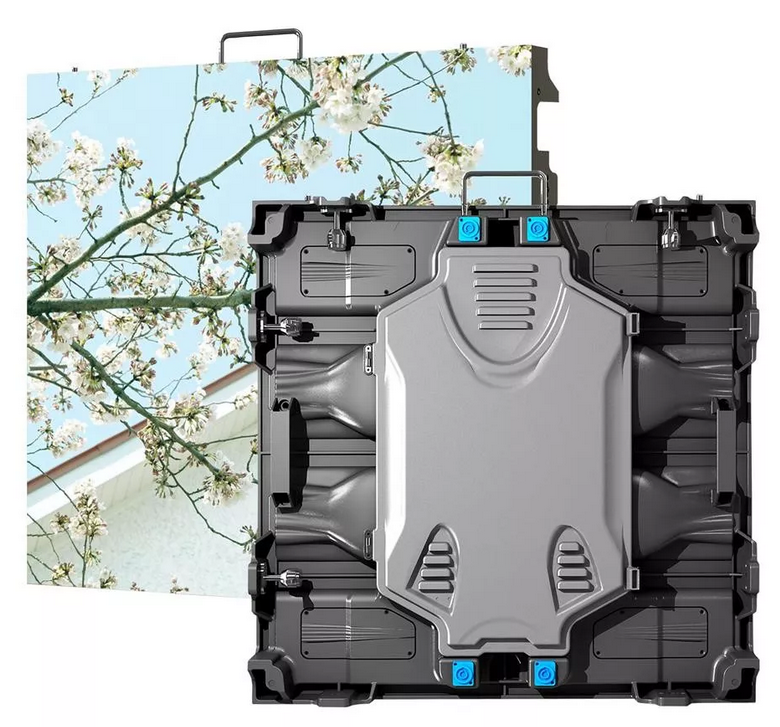

Cabinet
|
Cabinet size
|
640mm*640mm*85mm
|
960mm*960mm*85mm
|
640mm*640mm*85mm,
960mm*960mm*85mm
|
|
|
Cabinet Resolution
|
256 dot * 256 dt
|
240 dot * 240 dot
|
128 dot * 128 dot, 192 dot*192 dot
|
||
|
Quantity of panel
|
8pcs
|
18pcs
|
8pcs, 18pcs
|
||
|
Hub connecting
|
HUB75-E
|
HUB75-E
|
HUB75-E
|
||
|
Best viewing angle
|
140/120
|
140/120
|
140/120
|
||
|
Best viewing distance
|
2-30M
|
4-30M
|
5-30M
|
||
|
Operating temperature
|
-10C°~45C°
|
-10C°~45C°
|
-10C°~45C°
|
||
|
Screen power supply
|
AC110V/220V - 5V60A
|
AC110V/220V - 5V60A
|
AC110V/220V - 5V60A
|
||
|
Max power
|
780 W/m2
|
700 W/m2
|
750W/m2
|
||
|
Average power
|
390 W/m2
|
350 W/m2
|
375W/m2
|
||
|
Technical
Signal Index
|
Driving IC
|
ICN 2037 / 2153
|
ICN 2037 / 2153
|
ICN 2037 / 2153
|
|
|
Scan Rate
|
1/32S
|
1/20S
|
1/16S
|
||
|
Refresh frepuency
|
1920-3300 HZ/S
|
1920-3840 HZ/S
|
1920-3840 HZ/S
|
||
|
Display color
|
4096*4096*4096
|
4096*4096*4096
|
4096*4096*4096
|
||
|
Brightness
|
800-1000 cd/m2
|
800-1000 cd/m2
|
900-1100 cd/m2
|
||
|
Life span
|
100000Hours
|
100000Hours
|
100000Hours
|
||
|
Control distance
|
<100M
|
<100M
|
<100M
|
||
|
Operating Humidity
|
10-90%
|
10-90%
|
10-90%
|
||
|
IP protective index
|
IP43
|
IP43
|
IP43
|
||
FAQ
Q1:Are you a manufacturer or trading company?
Q2:How does your factory do regarding quality control?
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 8 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q6:How long is the warranty?
A6:The standard warranty is 1 year. It could be longer upon request.
A6:The standard warranty is 1 year. It could be longer upon request.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
