P2.9 Indoor Led Display

P2.9 LED Display Panel Stage LED Screen 500x500mm Indoor LED Screen Price Video Wall HD P2.9 LED Display

Pixels: 2.9mm
use:advertising publish, shopping mall, exhibition hall, airport
Refresh Rate:3840Hz
Screen Dimension:Customized Size
Product description: P2.9 Led Display Panel Stage Led Screen 500x500mm Indoor Led Screen Price Video Wall Hd P2.9 Led Display - Buy Truss P2.9 Led Display,Video Wall Led Matrix Indoor Led Screen,Stage Led Display Indoor L
INQUIRY

Product Description

New Arrived Rental LED Display Series

P2.6 P2.9 P3.91 P4.81 indoor outdoor stage background led display

* 500*500mm and 500*1000mm die casting aluminum panel for your choose.
* High brightness 3840Hz refresh rate.
* Nova star A5S control system indoor outdoor led screen

Product detail

* Multi Pixel Pitch For Options： P2.6/P2.9/P3.9/P4.8
* Specially use for TV studio, conference center,monitoring center and cinema, museum, ect.

* Seamless connection, high contrastratio, high refresh rate, 16 bit high gray level.
* Front Service: Magnetic Module Ergonomic design.

Panel Details Show

* Size: 500(W)*500(H)x76.6(T)mm

* Weight: 7.5kg

* Pixel Pitch: P2.6/P2.9/P3.9/P4.8

* Application: stage background, party, show room, exhibition, bar, church...

Maintenance

* Front and rear maintenance available.

* Faster and easier to install and disassembly.

* Magnetic suction installation, simple and quick maintenance for various installation environment, improve work efficiency.

* Die casting aluminum panel.

HUB Board Connection

HUB Board

* Without wires connection, signal and power can transfer more stable and reliable.

* HUB board connect modules and power supplies directly instead of wires.

* Directly take out back cover, easy to change within 5 seconds.

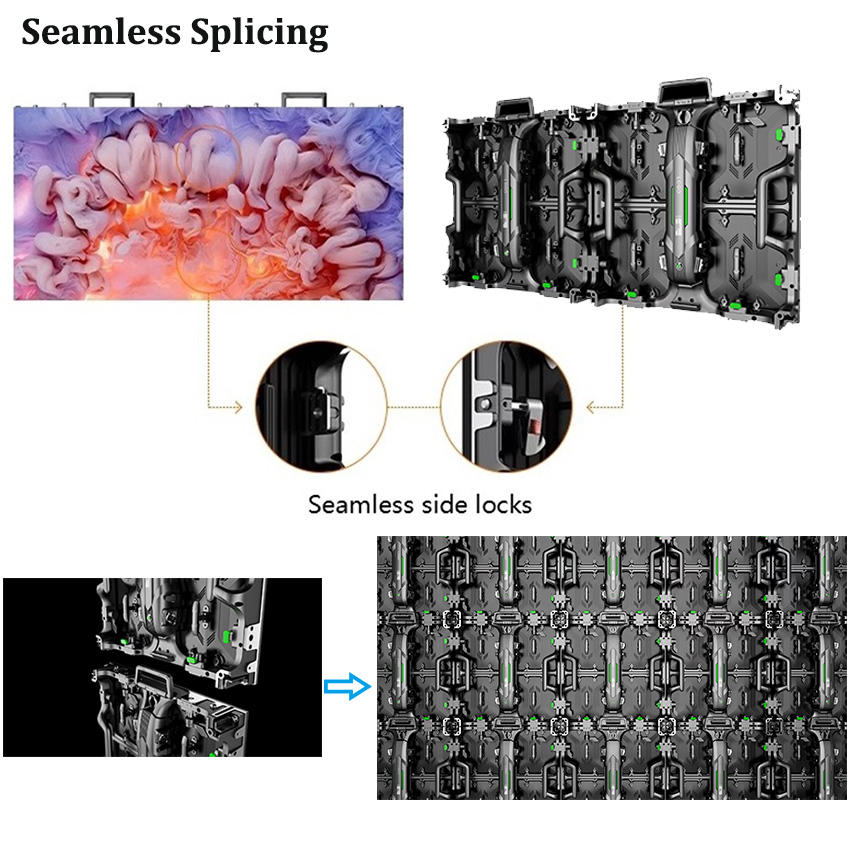

LED Display Seamless Splicing

* Slim and light weight,quick disassembly.
* Weight: 7.5kg/cabinet,one person can carry,saving time and effort.
* High degree of protection,high durability.
* Common good,flexible and easy to use.

LED Display Test

Each product tested more than 72 hours before shipment.

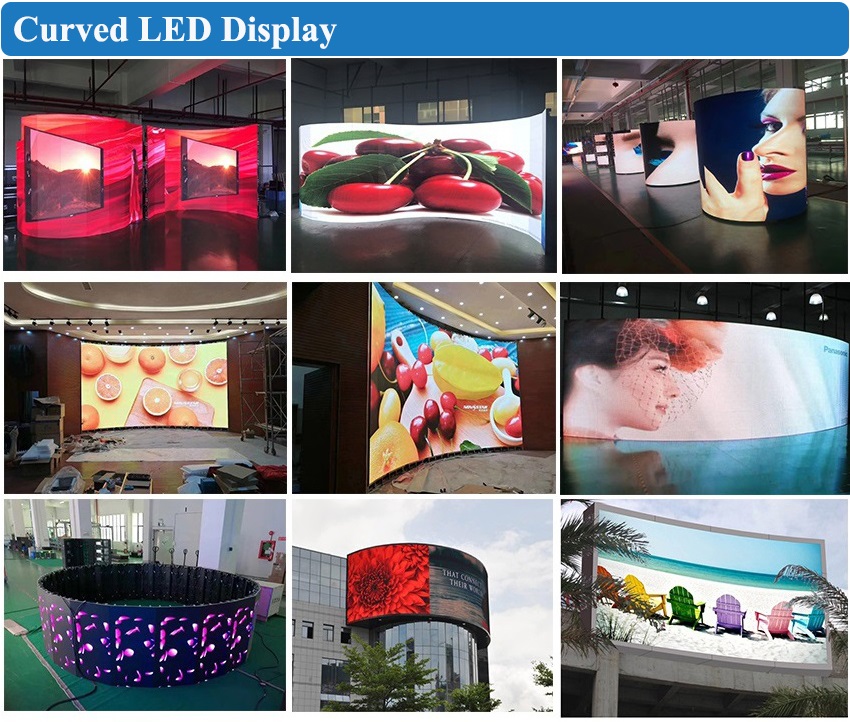

It can used as curved screen

It can used as curved screenCan be used as curve screen -5 to +10 degrees.

Specification

Pixel Pitch	P2.6	P2.9	P3.91	P4.81
Panel Resolution	192*192 pixel	168*168 pixel	128*128 pixel	104*104 pixel
Panel Size	500*500mm
LED Encapsulation	3 in 1 smd2121 kn-light top A class
Brightness	Indoor 1500CD, Outdoor 5500CD
Refresh Rate	1920-3840Hz
Working Voltage	100-240V
Power consumption	50W/panel on average, 150W/panel maximum
Support Input	HDMI, DVI, VGA, USB, SDI...
Panel Weight	7.5 kg
Operating system	Windows, IOS
Life span	100000 Hours
Warranty	3 Years

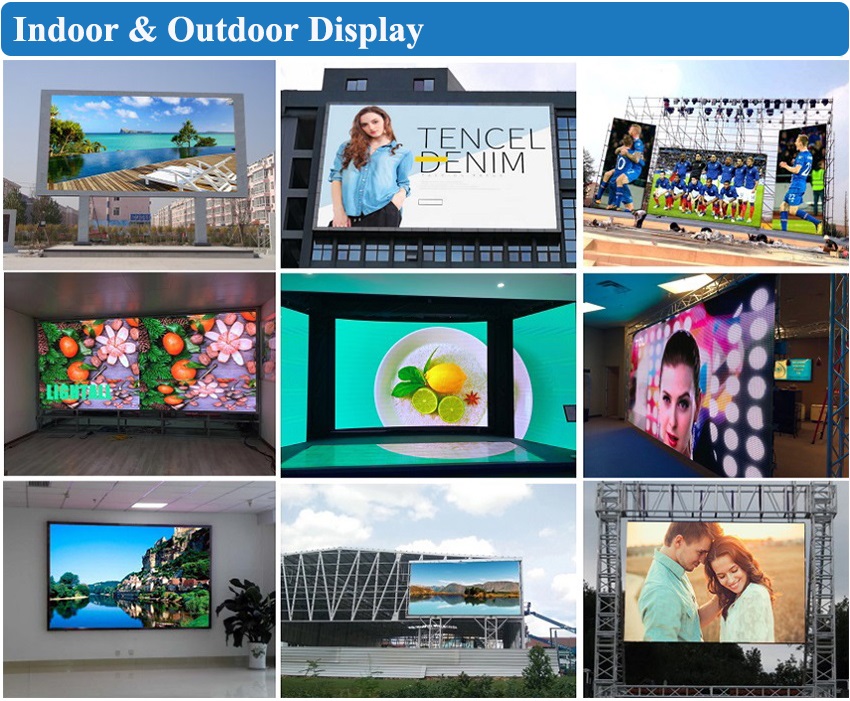

LED Display Case

Company Profile

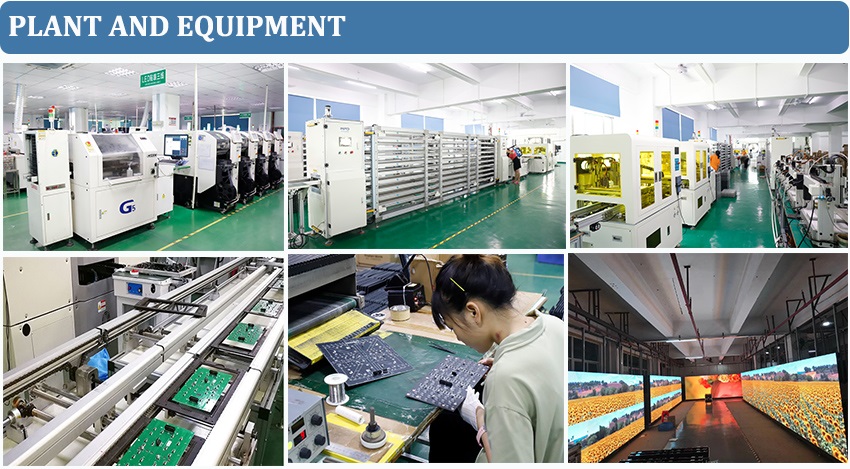

Shenzhen Smail Technology Co Ltd is a professional LED display and LED lighting product manufacturer, integrating the R&D, manufacture, marketing and after-sales service into one. We constantly introduce the latest technique and mechanism. Now there are more than100 of high-accuracy automatic manufacture and testing device, including more than 50 SMT machine ( high-speed SMT machine, Samsung high-speed SMT machine), Reflow Solder, Automatic Tin Coat Machine, Automatic 3D Tin Coat Test SPI, Automatic LED module manufacture line, High-low temperature test chamber, Jarring Machine,Shenzhen Smail Owns a number of software and hardware design patents .We have already passed High-tech Enterprise, ISO9001, CCC, CE, FCC, RoHS Qualification Authorization, as well as other test Quality Certification. At the same time, we complete our product series as demands from market.Because of high quality product with competitive prices, professional solutions and good after-sales services, our company gets high praise from customers all over the world. We will keep supplying more good products and services to our customers. Our Targets is satisfying the demands of consumers in an all-round way. Hope we can work a better prospects of LED opt-electrical industry.
