P2 Indoor Module
Hot Sale HD LED Matrix Module Full Color P2 Indoor 256x128mm 128x64Pixels SMD1515 RGB 1/32 Scanning LED Display Panel
- Pixel Pitch:2mm
- Brightness:3500cd/sqm
- Scan Mode:1/32 Scanning
- Function:SDK
- Product description: Hot Sale Hd Led Matrix Module Full Color P2 Indoor 256x128mm 128x64pixels Smd1515 Rgb 1/32 Scanning Led Display Panel - Buy P2 Led Panel,Led Tv Display Panel,Movie Led Display Product on Kxdisplay.com
Products Parameters

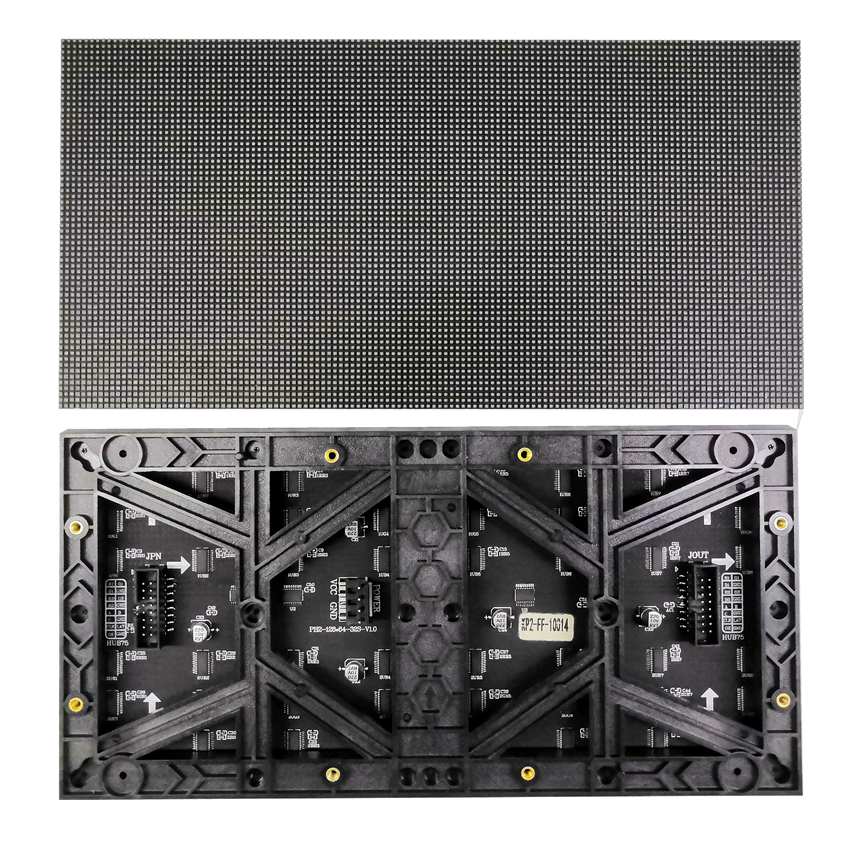

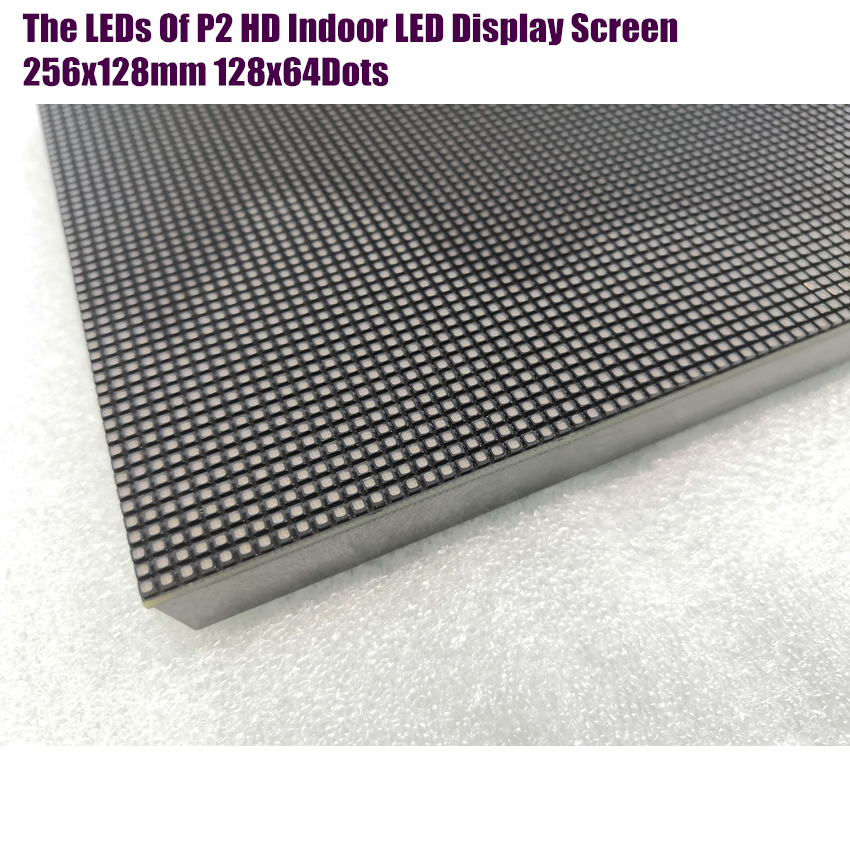

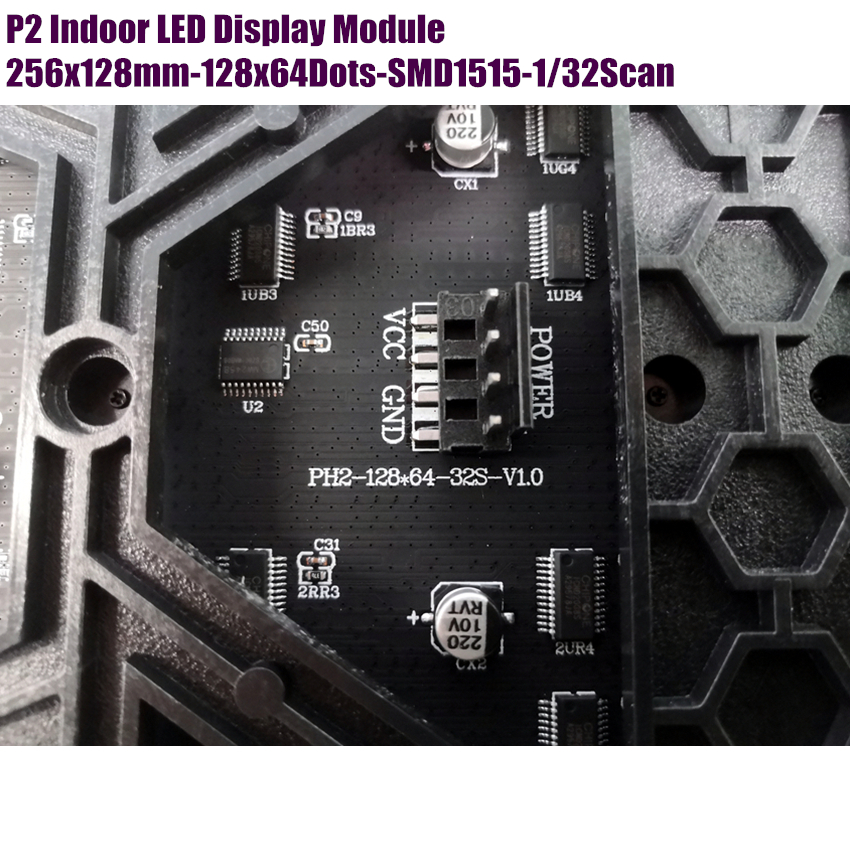

256x128 mm 128x64 Dots 1/32Scanning SMD1515 Indoor RGB P2 LED Display Module
|
|||
Pixel Pitch
|
2mm
|
Density
|
250000 dots/m2
|
Module Size
|
256x128 mm
|
Module Resolution
|
128x64pixels
|
Pixel Configuration
|
SMD RGB 3 in 1
|
Module Weight
|
0.35 kg
|
Cabinet Size
|
512x512 mm
|
Cabinet Resolution
|
256x256 pixels
|
Cabinet Thickness
|
80mm
|
Cabinet Weight
|
12 kg
|
Viewing Angle
|
H: 160° V: 140°
|
Viewing Distance
|
2 - 100m
|
Refresh Rate
|
≥2000Hz
|
Frequency Rate
|
≥60 Hz
|
Scan Mode
|
1/32scanning
|
Gray Scale
|
16 grade adjustable
|
Power Consumption
|
AVG: 15W, MAX: 25W
|
Brightness
|
≥3500 nits
|
LED Size
|
SMD1515
|
Life Span
|
100000 hours
|

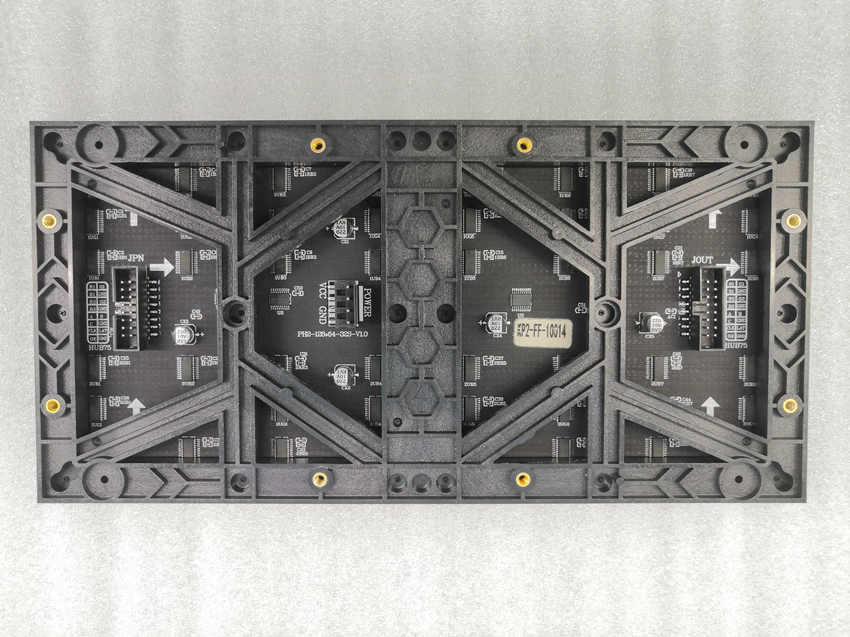

Product detail

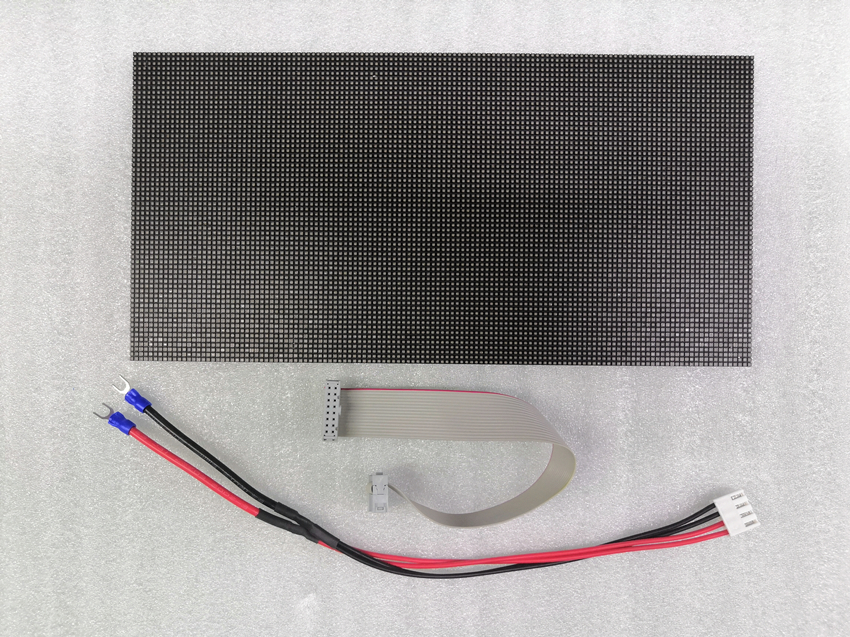

Packing List

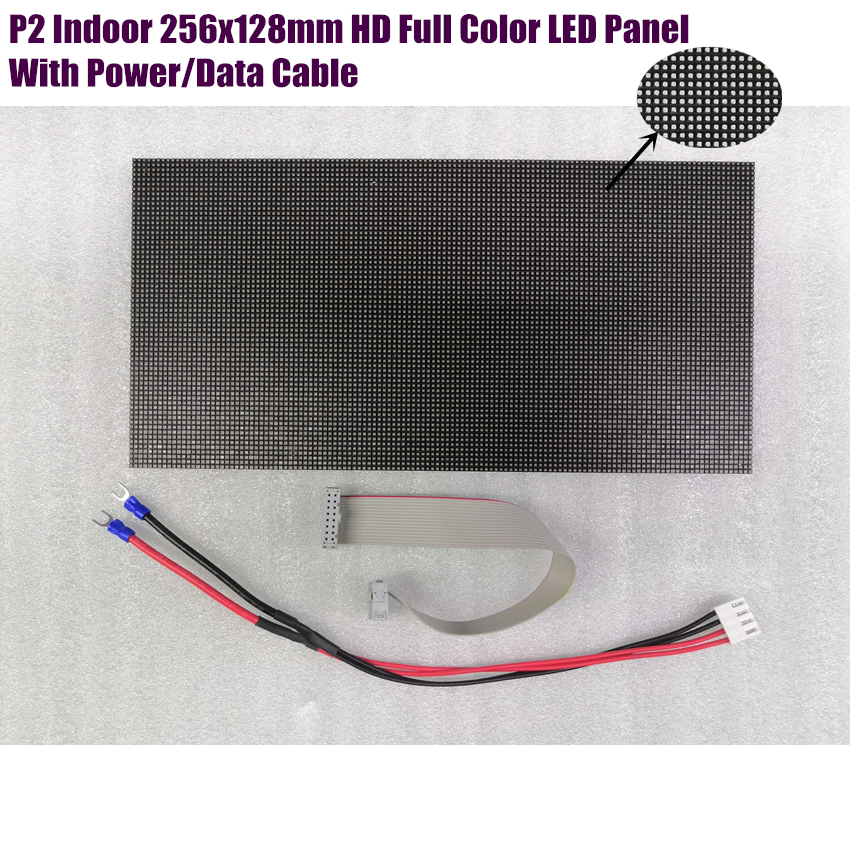

* 1 pcs full color led module ( P2 Indoor 256x128 mm )
* 1 pcs date cable
* 1 pcs power cable ( If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules )
Recommend To You

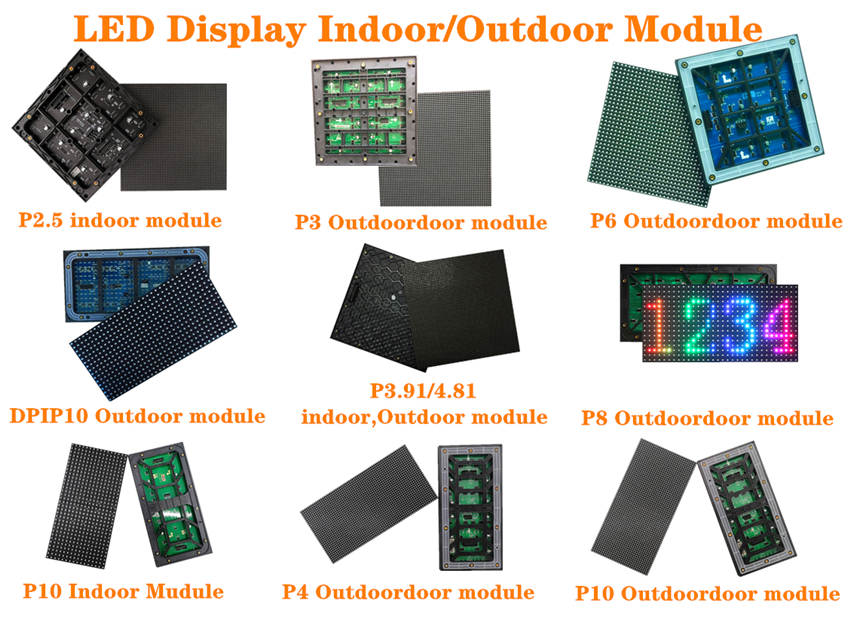

We have all types of modules and displays, please feel free to contact us if you need anything
P1.25/P1.56/P1.667/P1.875/P2/P2.5/P3/P4/P3.91/P4.81/P5/P6/P6.67/P8/P10
P1.25/P1.56/P1.667/P1.875/P2/P2.5/P3/P4/P3.91/P4.81/P5/P6/P6.67/P8/P10
Our success Case
Company&Certificate
Shenzhen Smail Technology Co Ltd is a professional LED display and LED lighting product manufacturer, integrating the R&D, manufacture, marketing and after-sales service into one. We constantly introduce the latest technique and mechanism. Now there are more than100 of high-accuracy automatic manufacture and testing device, including more than 50 SMT machine ( high-speed SMT machine, Samsung high-speed SMT machine), Reflow Solder, Automatic Tin Coat Machine, Automatic 3D Tin Coat Test SPI, Automatic LED module manufacture line, High-low temperature test chamber, Jarring Machine,Shenzhen Smail Owns a number of software and hardware design patents .We have already passed High-tech Enterprise, ISO9001, CCC, CE, FCC, RoHS Qualification Authorization, as well as other test Quality Certification. At the same time, we complete our product series as demands from market.Because of high quality product with competitive prices, professional solutions and good after-sales services, our company gets high praise from customers all over the world. We will keep supplying more good products and services to our customers. Our Targets is satisfying the demands of consumers in an all-round way. Hope we can work a better prospects of LED opt-electrical industry.
Packing & Delivery

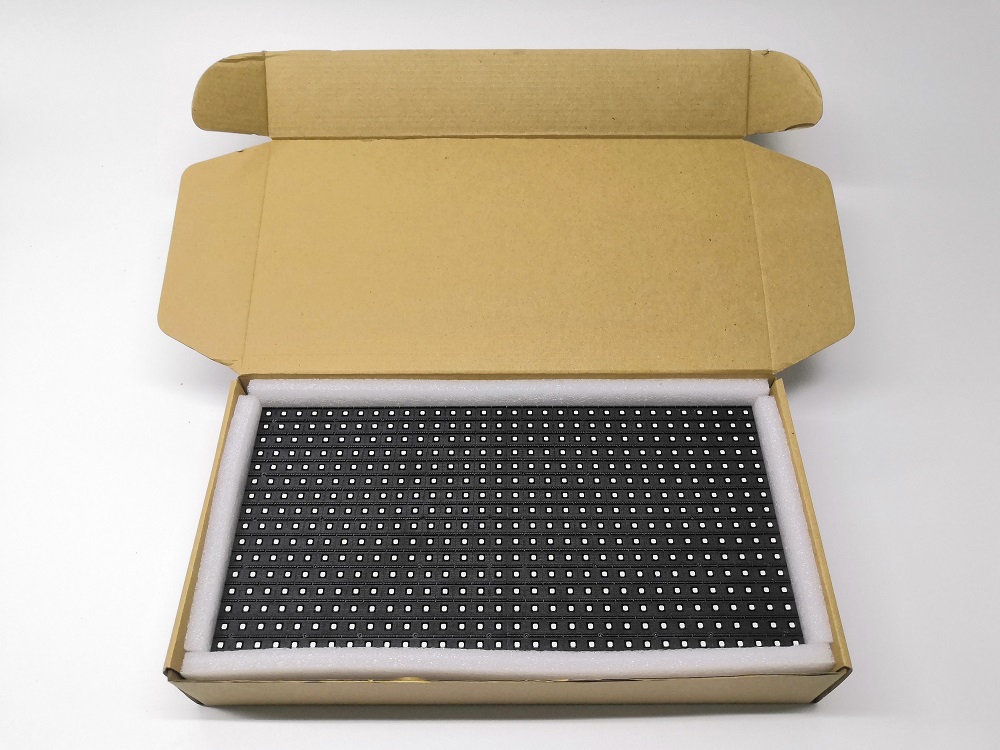

1. Original carton and impact-proof foam for LED module
2. Wooden case with foam for fixed installation type LED display
3. Flight case with foam for rental type LED display
4.We provide sea, express, air, special line for customers to choose
