P10 Outdoor Module
Outdoor Full Color P10 LED Module,320mm x 160mm Red P10 LED Display Module
- Pixel Pitch:10mm
- Scan Mode:1/4 Scan
- Brightness:6000 cd/m2
- Module Pixel:32 x 16 dots
- Product description: Outdoor Full Color P10 Led Module,320mm X 160mm Red P10 Led Display Module - Buy P10 Led Module,320mm X 160mm Red Color P10 Led Module,Outdoor P10 Led Display Module Product on Kxdisplay.com"/>
Products Parameters
Item
|
Specification
|
||
Pixel Pitch
|
10mm
|
||
Usage
|
Outdoor
|
||
Color
|
Red
|
||
Pixel Configuration
|
1R
|
||
Packing
|
DIP546
|
||
LED Chip
|
Epistar
|
||
Module Size
|
320mm x 160mm
|
||
Module Resolution
|
32 dots x 16 dots
|
||
Pixel Density
|
10000 dots/m2
|
||
Module Weight
|
0.6 kg
|
||
Drive Voltage
|
3.3V~6V
|
||
Module Electric Current
|
3.2A
|
||
Ave.Power Consumption
|
16 W
|
||
Scan Mode
|
1/4 Scan
|
||
Driving
|
Constant current
|
||
Communication Port
|
HUB 12
|
||
Brightness
|
≥2000 cd/m2
|
||
View Distance
|
10-50 m
|
||
View Angle
|
Horizontal: 80 °, Vertical: 60 °
|
||
Display Function
|
Text
|
||
Waterproof
|
IP65
|
||
MTBF
|
>10,000 hours
|
||
Life Span
|
>100,000 hours
|
||
Assembly Precision Of PCB
|
≦0.2mm
|
||
Operation Temperature
|
-40 ℃~ +60 ℃
|
||
Operation Humidity
|
10% ~ 95%
|
||
Blind Lamp Rate
|
<0.0001
|
||
Control Method
|
WIFI, USB-Disc
|

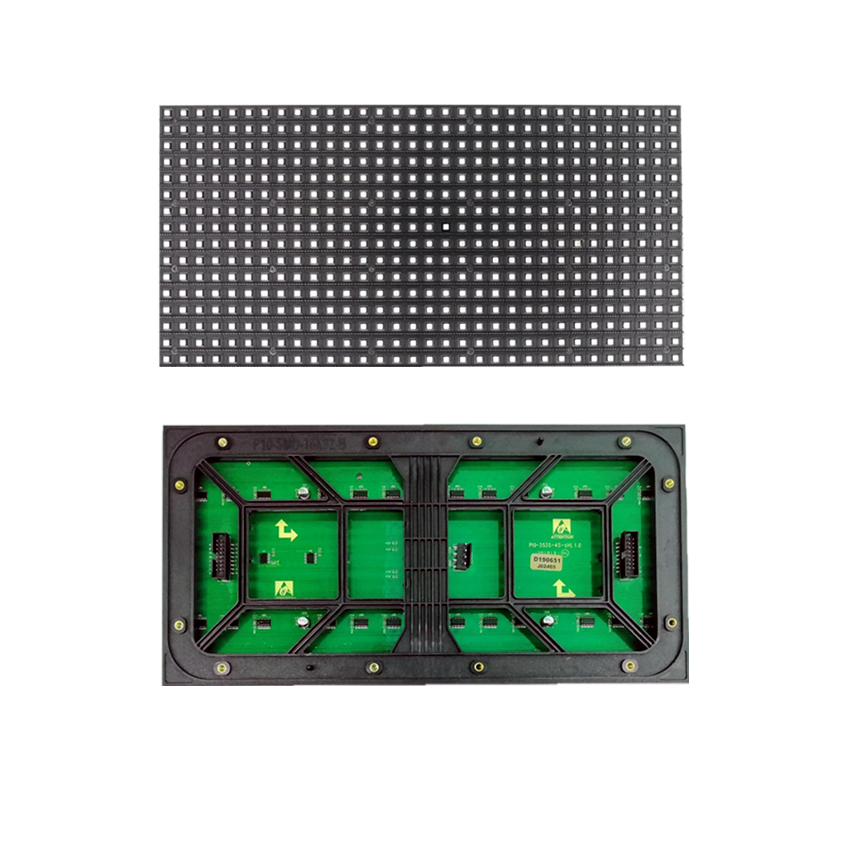

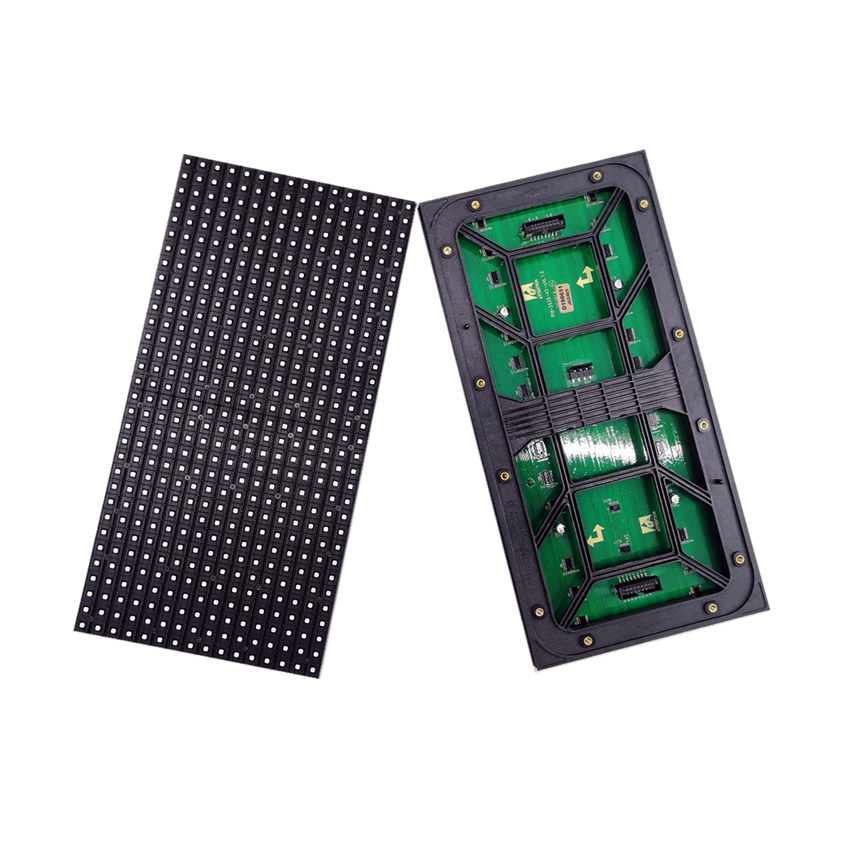

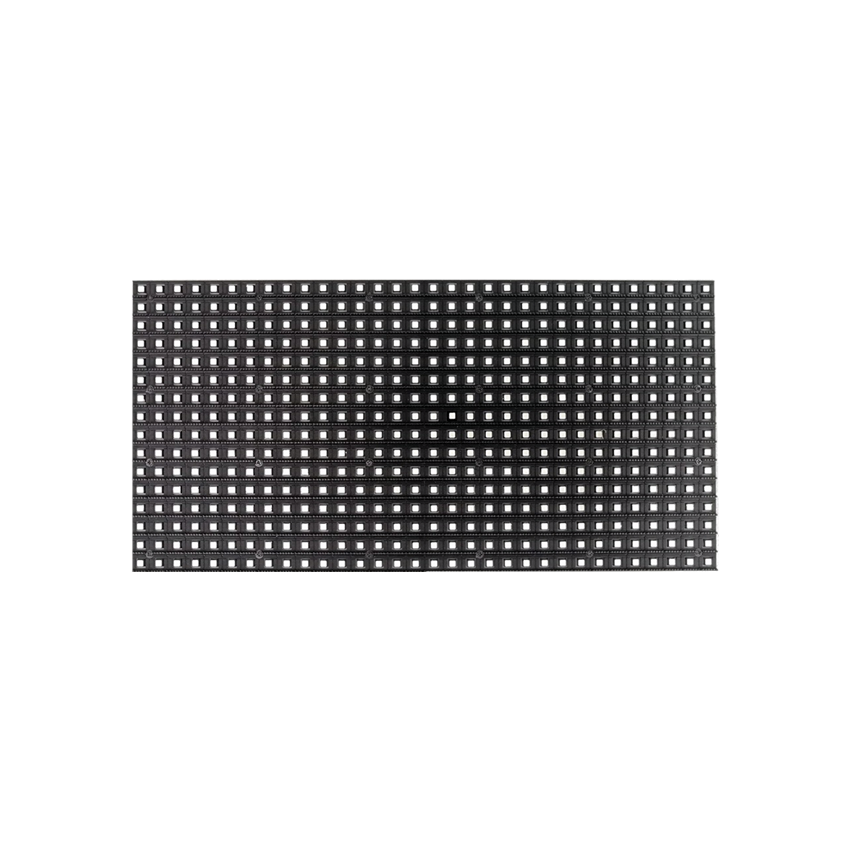

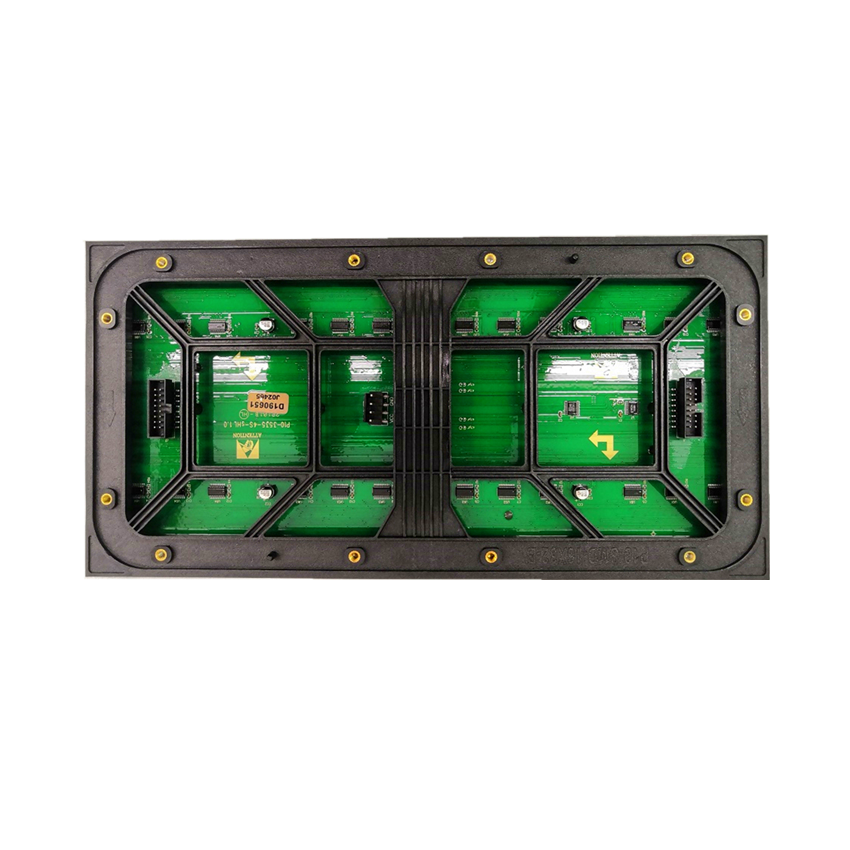

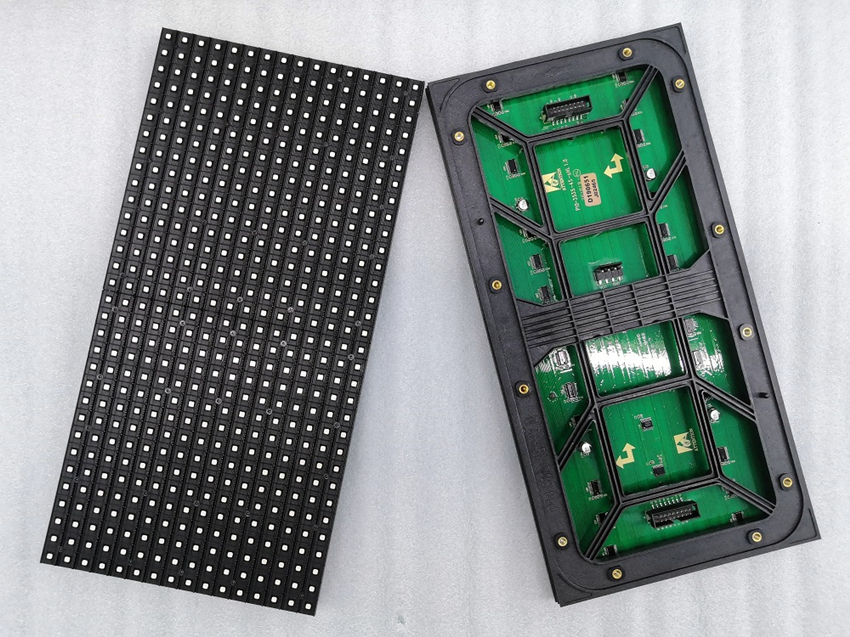

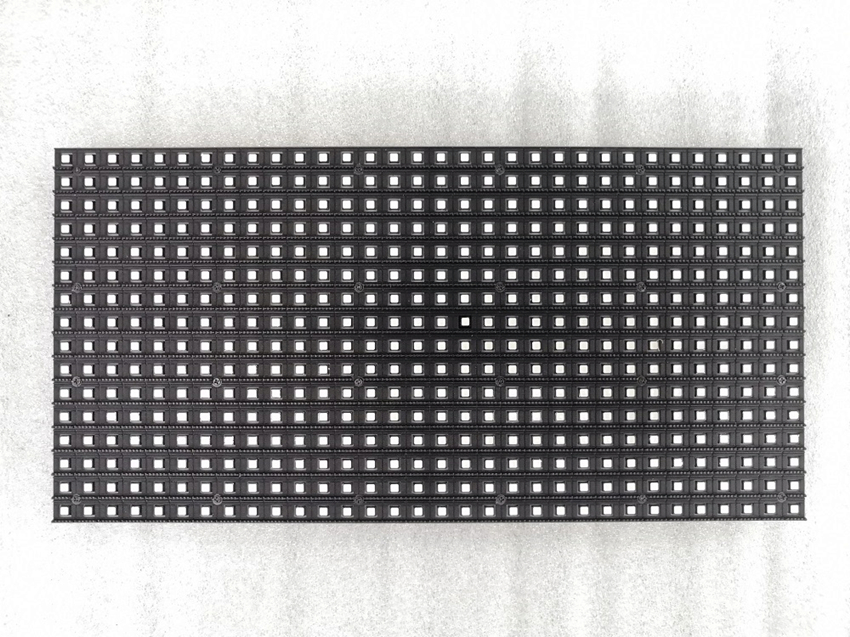

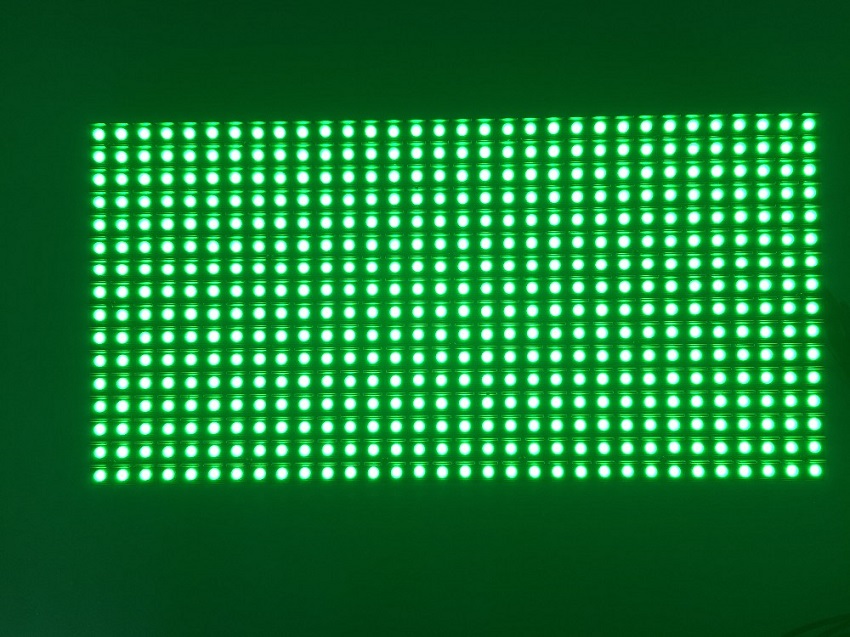

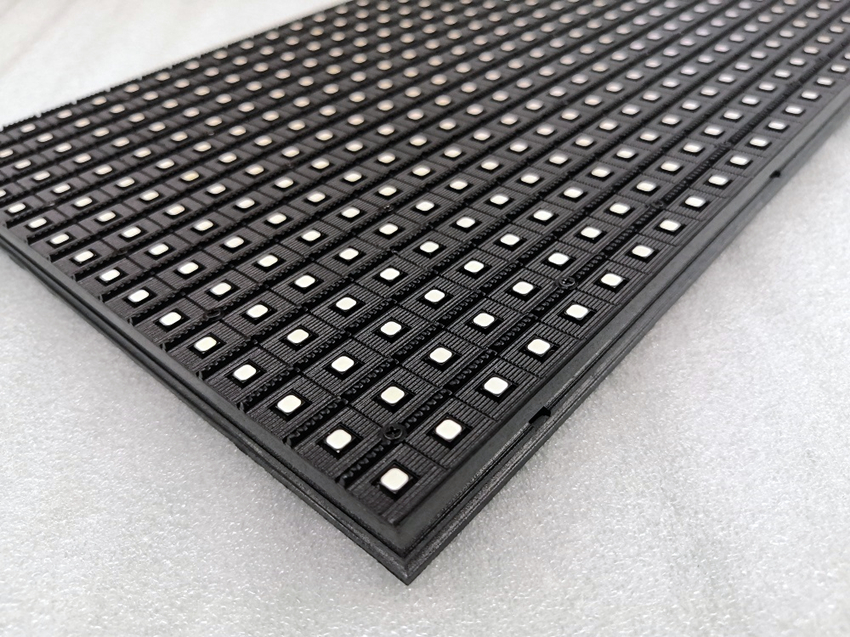

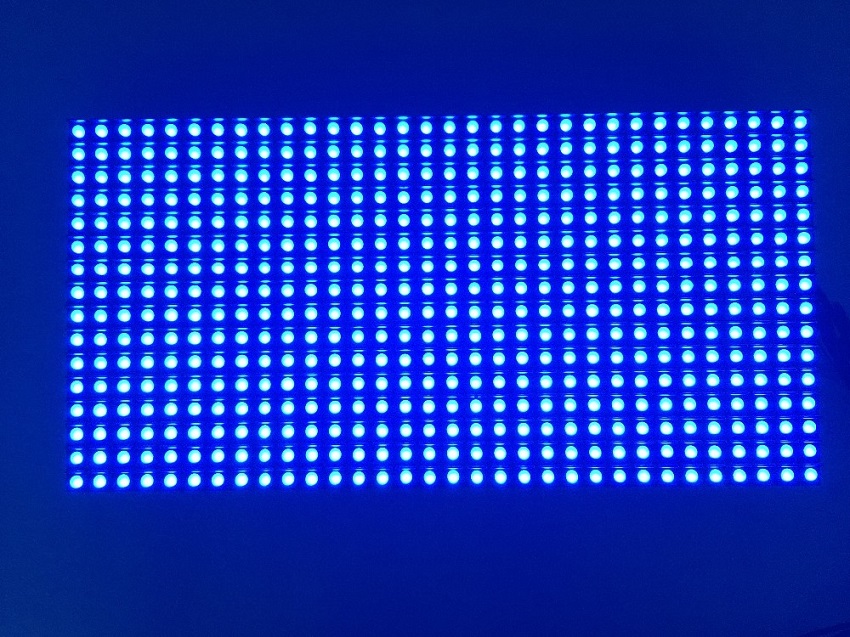

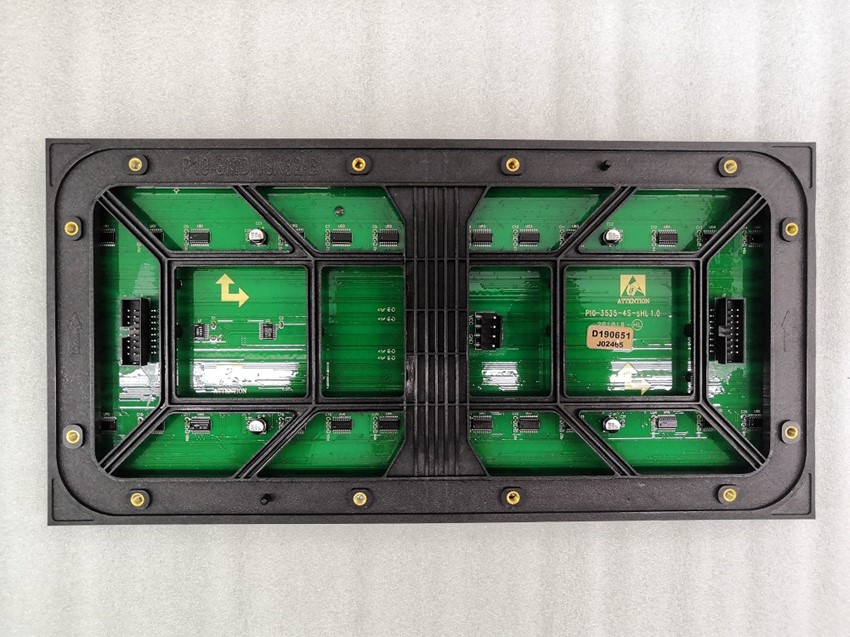

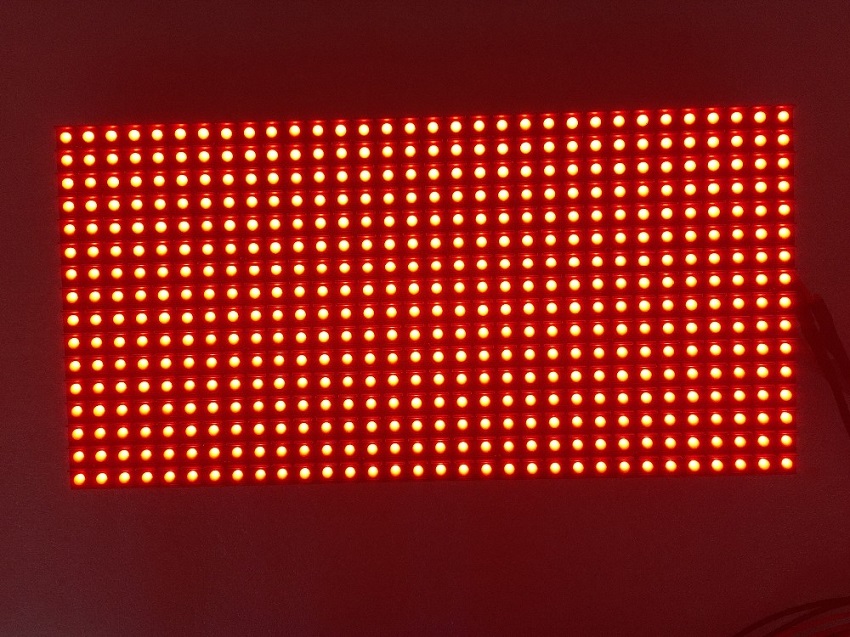

Product detail

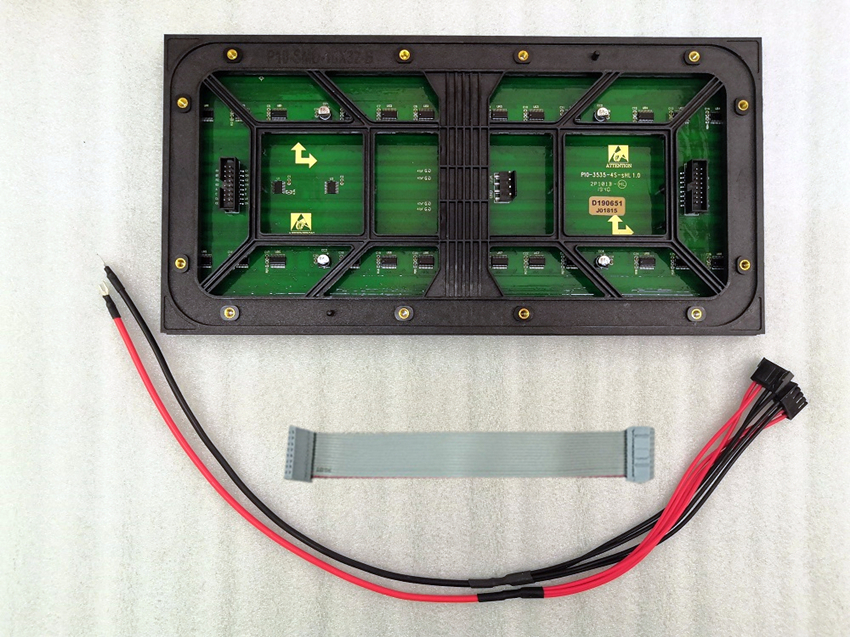

Packing List
* 1 pcs full color led module ( P10 Outdoor 320x160mm )
* 1 pcs date cable
* 1 pcs date cable
* 1 pcs power cable ( If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules )

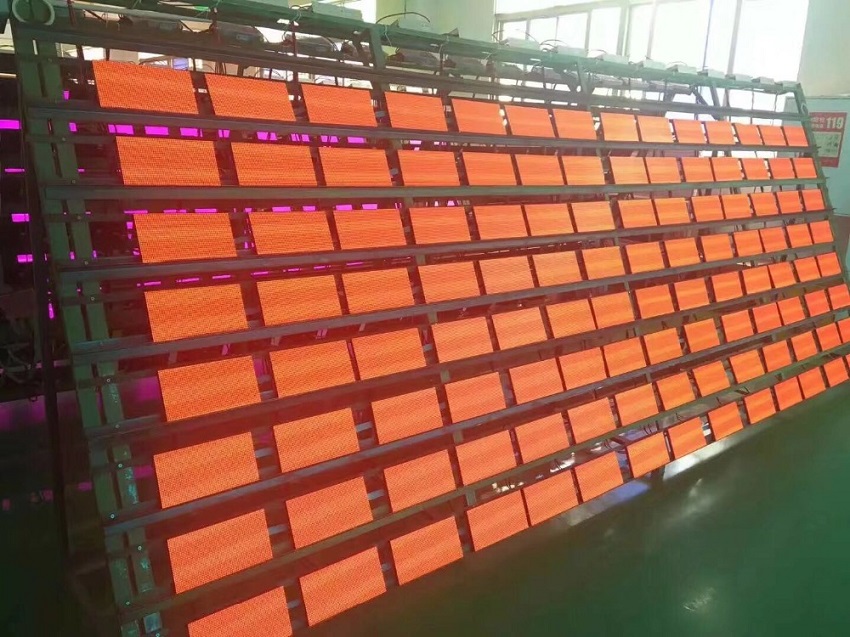

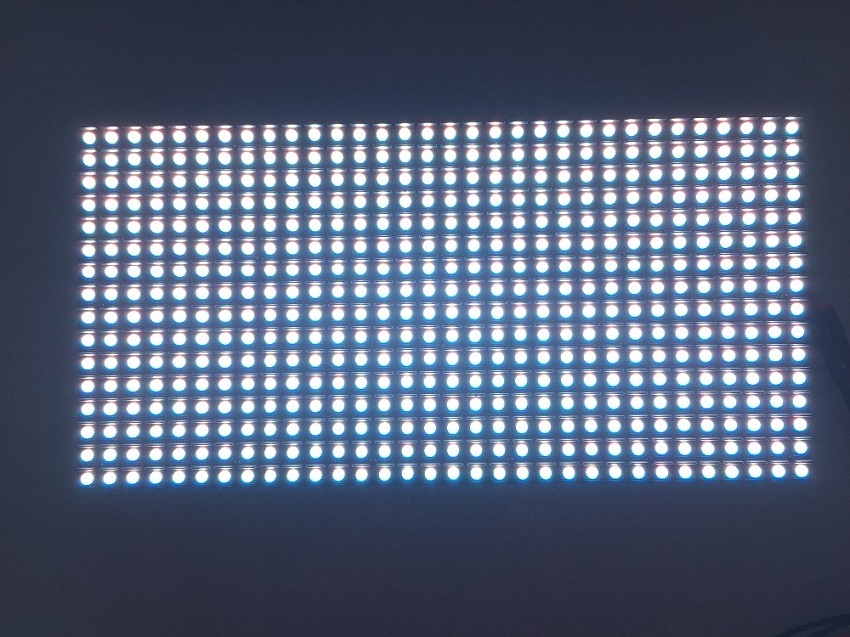

We will fully test the product before shipment to ensure perfect operation
Recommend To You
We have all types of modules and displays, please feel free to contact us if you need anything
P1.25/P2/P2.5/P3/P4/P3.91/P4.81/P5/P6/P6.67//P8/P10
P1.25/P2/P2.5/P3/P4/P3.91/P4.81/P5/P6/P6.67//P8/P10

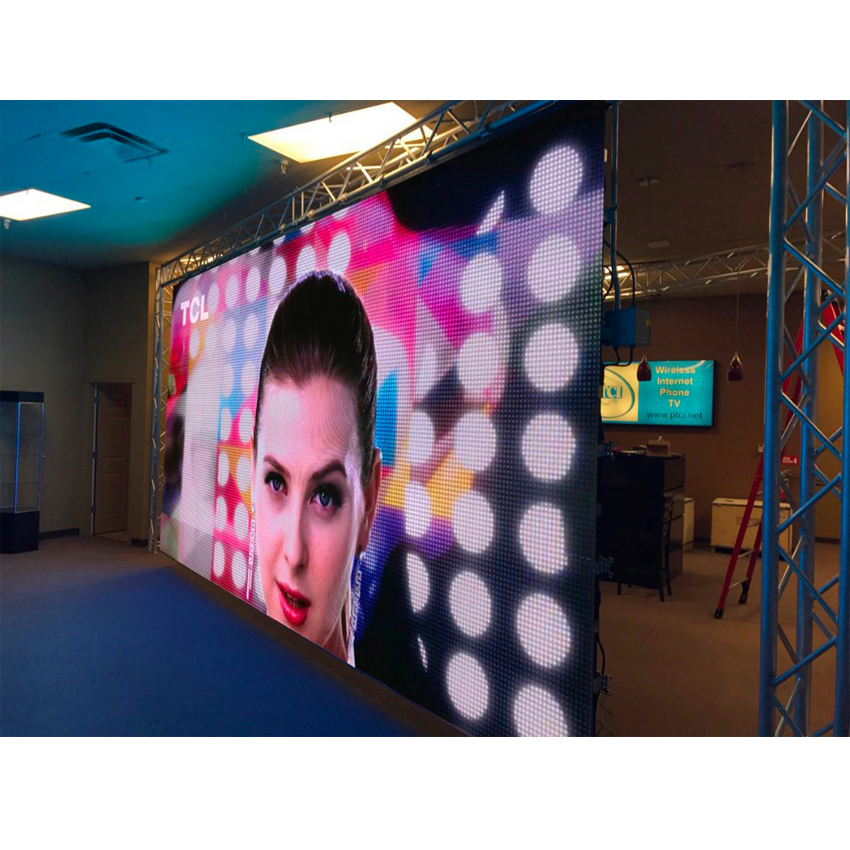

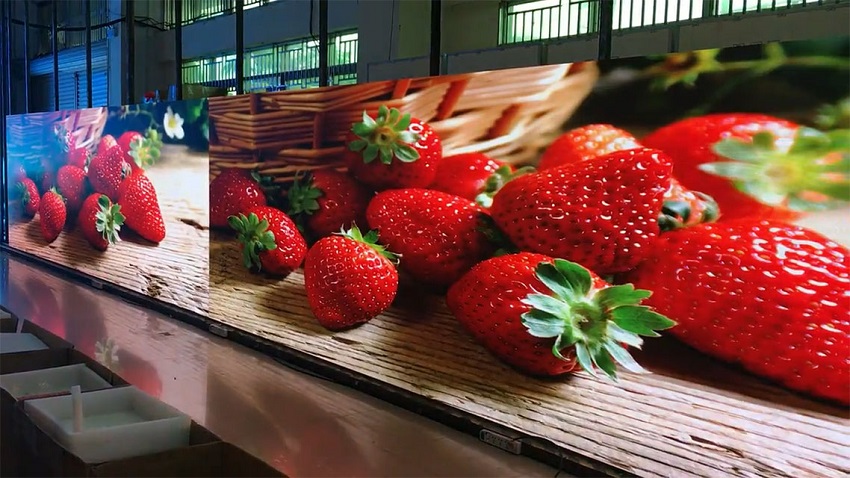

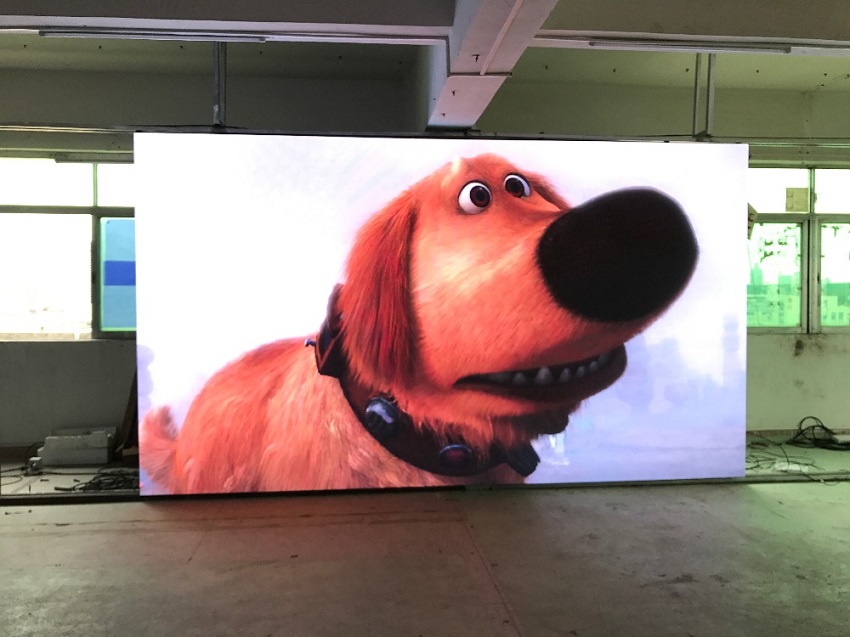

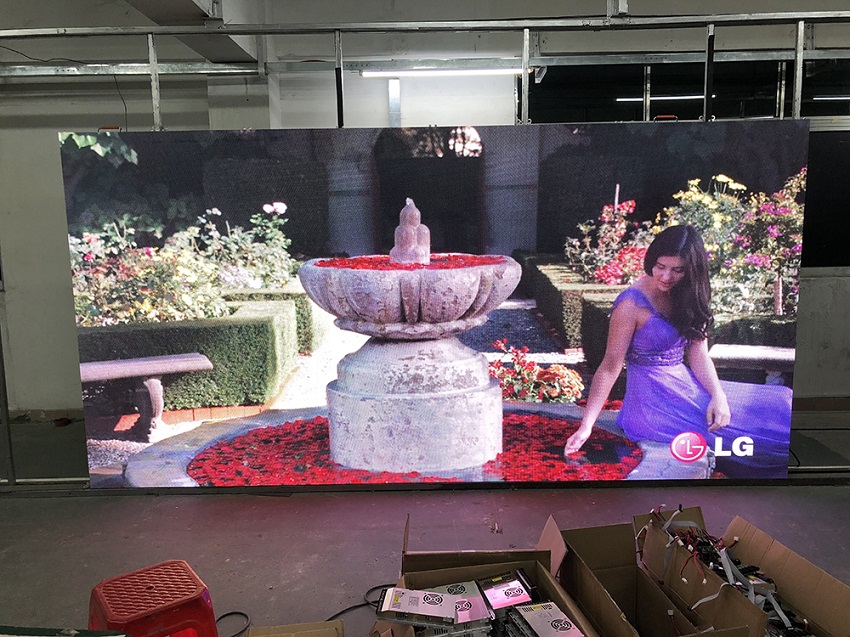

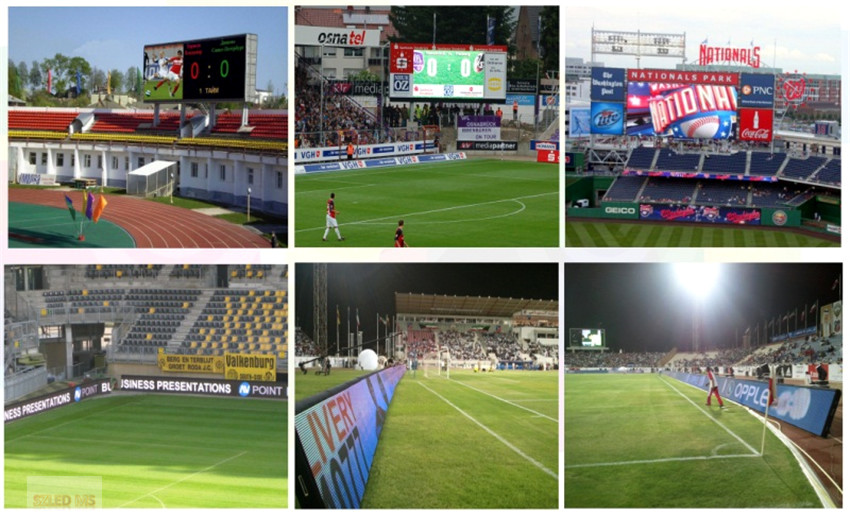

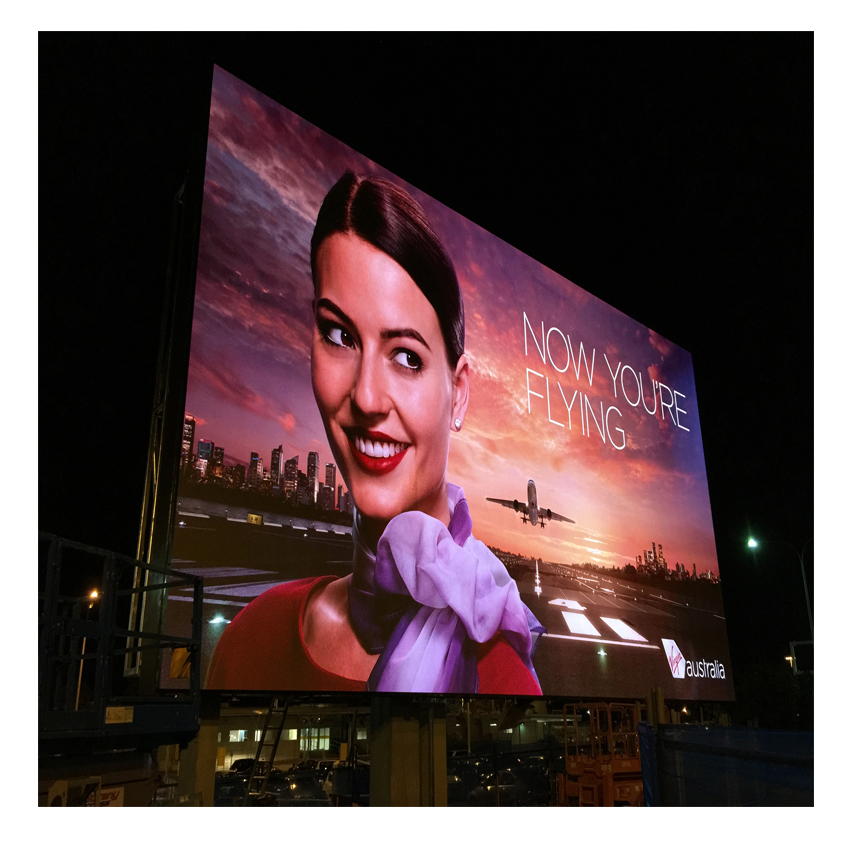

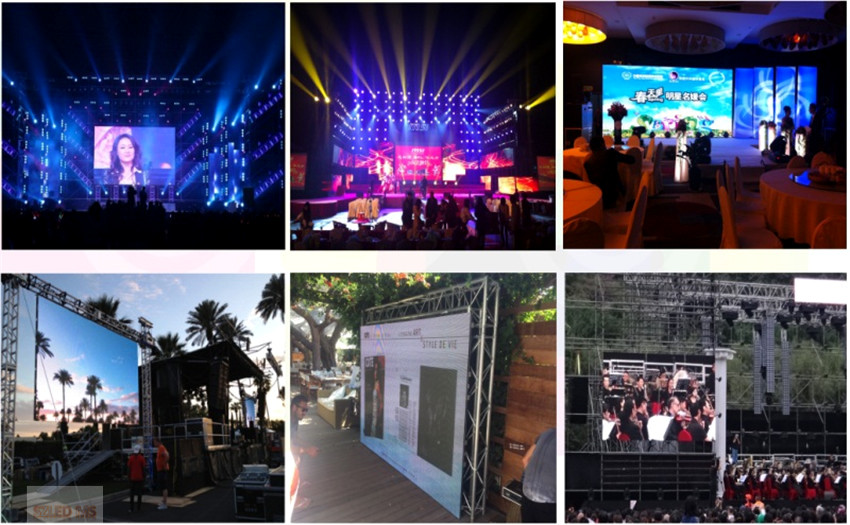

Our success Case

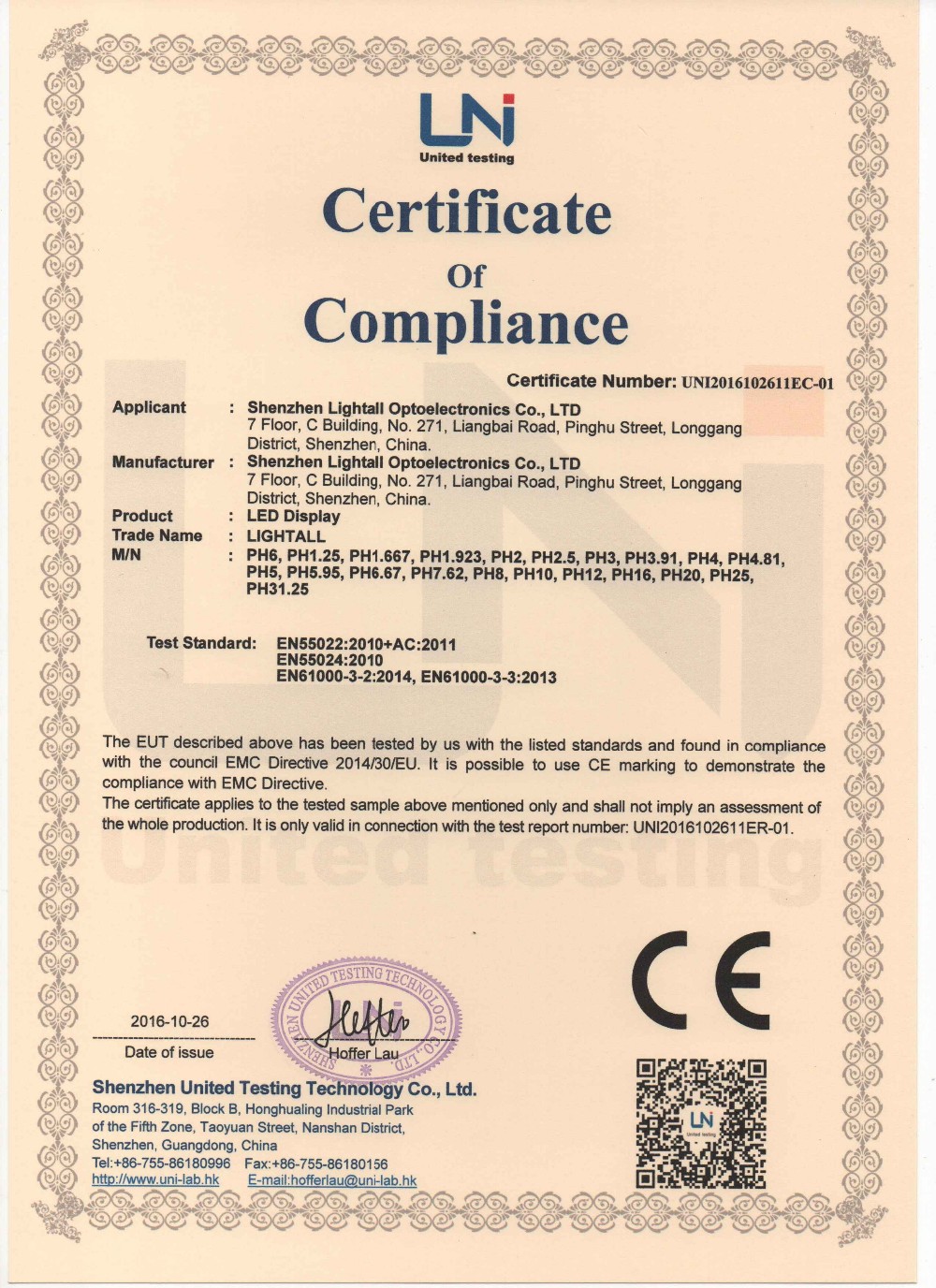

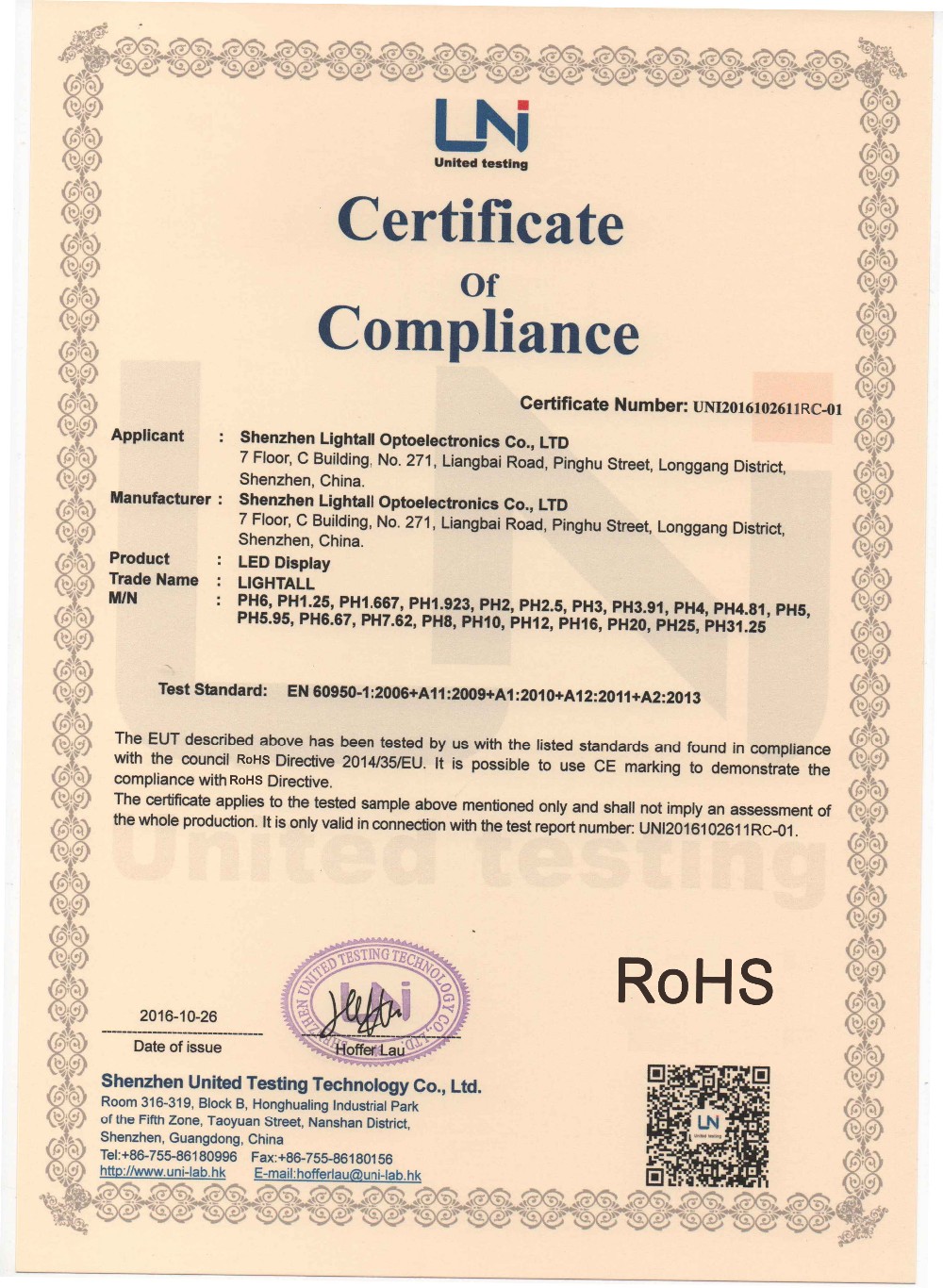

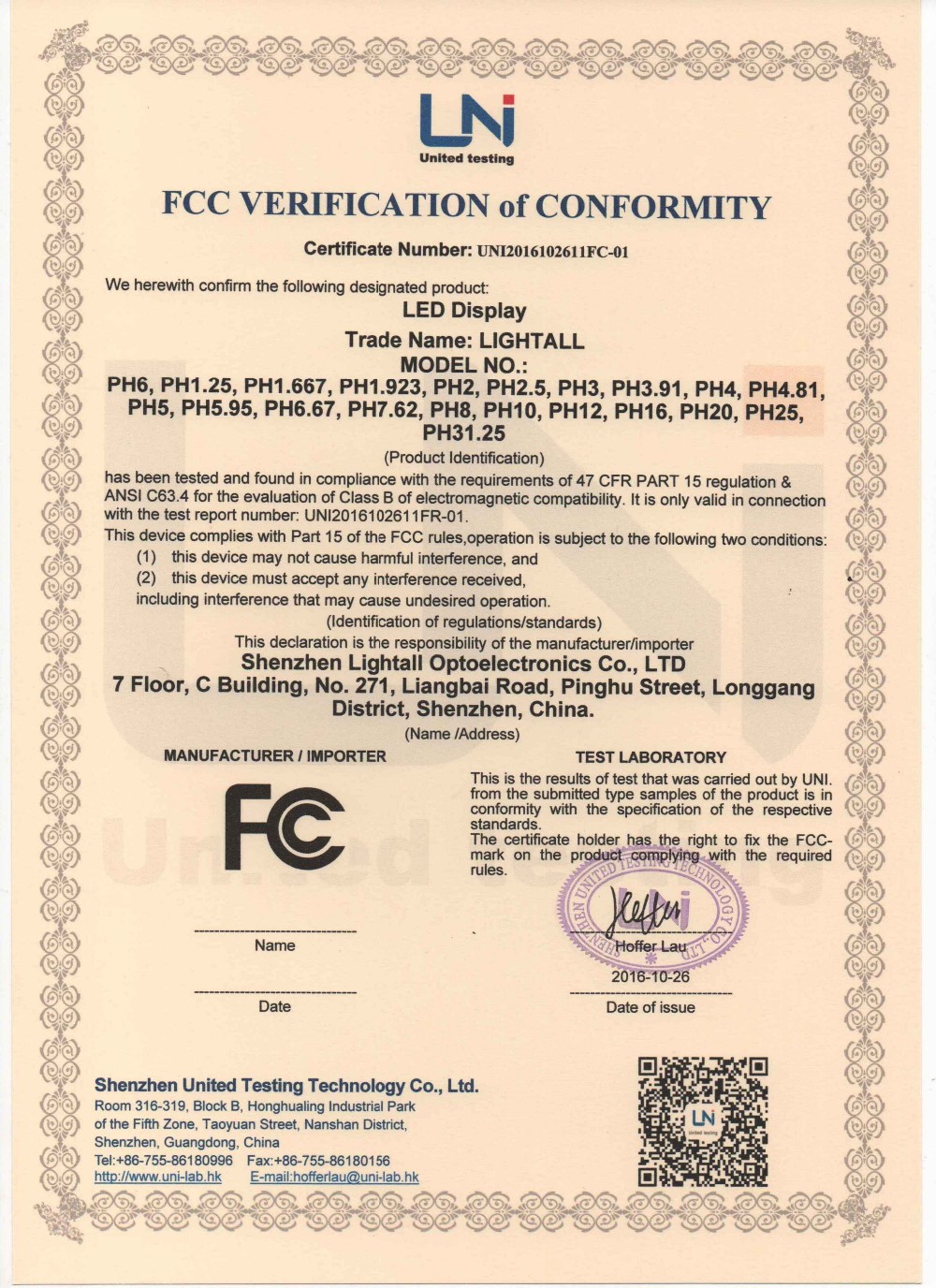

Certifications

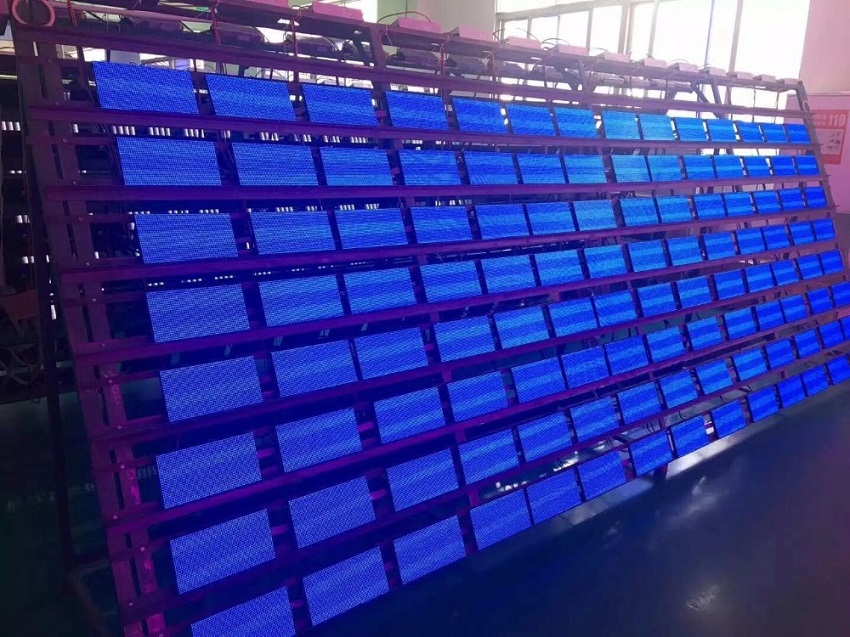

Company Profile

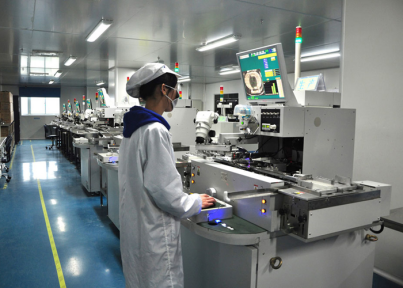

Shenzhen Smail Technology Co Ltd is a professional LED display and LED lighting product manufacturer, integrating the R&D, manufacture, marketing and after-sales service into one. We constantly introduce the latest technique and mechanism. Now there are more than100 of high-accuracy automatic manufacture and testing device, including more than 50 SMT machine ( high-speed SMT machine, Samsung high-speed SMT machine), Reflow Solder, Automatic Tin Coat Machine, Automatic 3D Tin Coat Test SPI, Automatic LED module manufacture line, High-low temperature test chamber, Jarring Machine,Shenzhen Smail Owns a number of software and hardware design patents .We have already passed High-tech Enterprise, ISO9001, CCC, CE, FCC, RoHS Qualification Authorization, as well as other test Quality Certification. At the same time, we complete our product series as demands from market.Because of high quality product with competitive prices, professional solutions and good after-sales services, our company gets high praise from customers all over the world. We will keep supplying more good products and services to our customers. Our Targets is satisfying the demands of consumers in an all-round way. Hope we can work a better prospects of LED opt-electrical industry.
Packing & Delivery
1. Original carton and impact-proof foam for LED module
2. Wooden case with foam for fixed installation type LED display
3. Flight case with foam for rental type LED display
4.We provide sea, express, air, special line for customers to choose
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 15 to 18 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: We are led display manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 15 to 18 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
