Video Processor

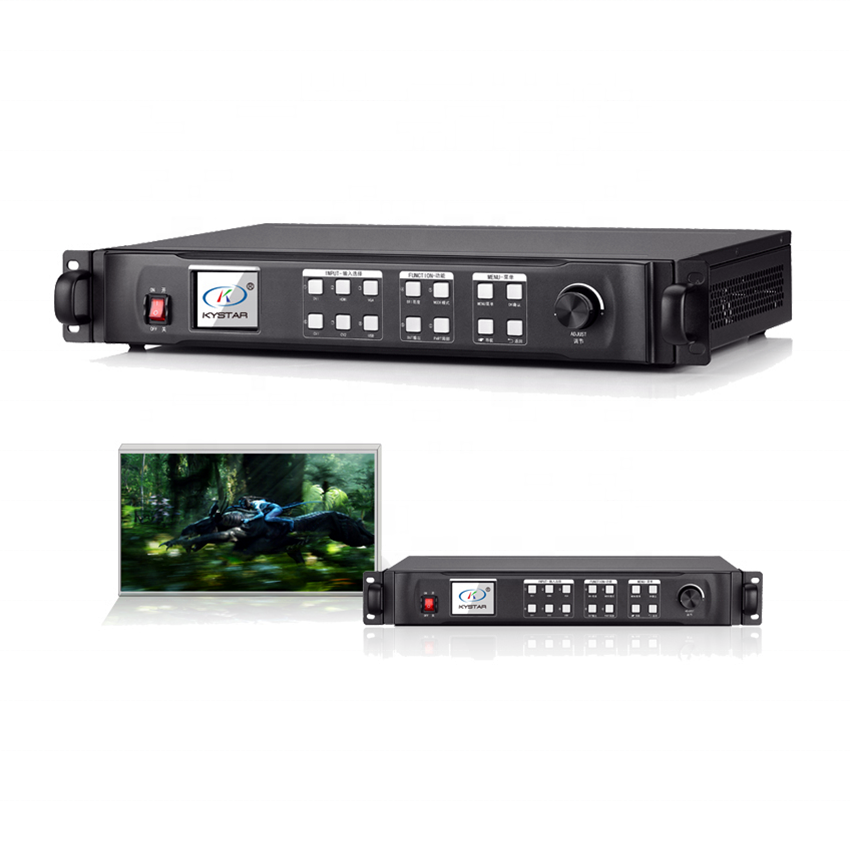

KS600 Video Processor Max 1920*1200 Resolution Support DVI/VGA/HD/CVBS LED Display Screen Processor

Pixel Pitch:all pixel LED Screen
Resolution:1920x1200 Max
Display Function:Video
Model Number: KYSTAR-KS600
Product description: Ks600 Video Processor Max 1920*1200 Resolution Support Dvi/vga/hd/cvbs Led Display Screen Processor - Buy Ks600 Video Processor,Led Video Processor For Led Display,Led Display Screen Video Processor P
INQUIRY

Product Features

KYSATR KS600 LED video processor scaler 1920*1200 Support 2 sending cards DVI VGA HDMI,LED video wall controller, Nova and Linsn

1.Operate by front panel independently,knob and numbering key bring more convenience for the operation.
2.PC software control,achieve prompt operation visually.
3.Fade in/out,perfect switch
4.Brightness and contrast control,enhance image display effect.
5.Picture zoom in/out freely( adjust picture pixel by pixel ,the minimum size can be 1 pixel)
6.Motion compensation,avoid trailing of pictures;
7.Noise reduction(reduce noise stain)
8.6-channel HD video signal inputs,2-channel video outputs
9.Max input resolution is 1920*1080, max output user-defined resolution is 1920*1200
10.Key lock function,prevent misoperation after debug
11.5 modes save and call
12.Wizard setting
13.Standard 1.5U,convenient for carry and installation

Specifications

CVBS(BNC input)
Number of Inputs		2
Supported Standards		PAL/NTSC
Signal Level		1Vpp±3db (0.7V Video+0.3v Sync ) 75Ω
HDMI Input
Number of Inputs		1
Supported Standards		EDID/DDC2B
Signal Level		1Vpp±3db (0.7V Video+0.3v Sync ) 75Ω
VGA (DB15 Input)
Number of Inputs		1
Interface type		Standard DB15 socket
Supported Standards		VGA-UXGA
Signal Level		R,G,B,Hsync,Vsync:0 to 1Vpp±3db (0.7V Video+0.3v Sync ) 75Ω black level: 300mV Sync-tip: 0V
DVI Input
Number of Inputs		1
Interface type		Standard DVI-D socket
Resolution supported		SMPTE: 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080P60,1080i50, 1080i59.94/60, 720p50 and 720p59.94/60 Hz VESA: 800×600@60Hz, 1024×768@60Hz 1280×768@60Hz,1280×1024@60,1600×1200@60Hz
Signal level		TMDS signal level, 165MHz bandwidth
Standard		DVI 1.1
DVI Output
Number		2
Interface type		Standard DVI-D
Resolution supported		1024×768@60Hz,1280×1024@60Hz 1366×768@60Hz,1440×900@60Hz 1600×1200@60Hz,1680×1050@60Hz 1920×1080@60Hz,1920x1200@60Hz
Signal level		TMDS electrical level, 165MHz bandwidth
Others

CE standard		BS EN 55013:2001+A1:2003+A2:2006 BS EN 61000-3-2:2006+A2:2009 BS EN 6100-3-3:2008 BS EN 55020:2007 BS EN 6006:2002+A1:2006+A11:2008
PC or central control system control		RS232
Power		85-264V 2A IEC-3 power interface
Work environment		0°C~45°C
Humidity		10% to 90%

Product detail

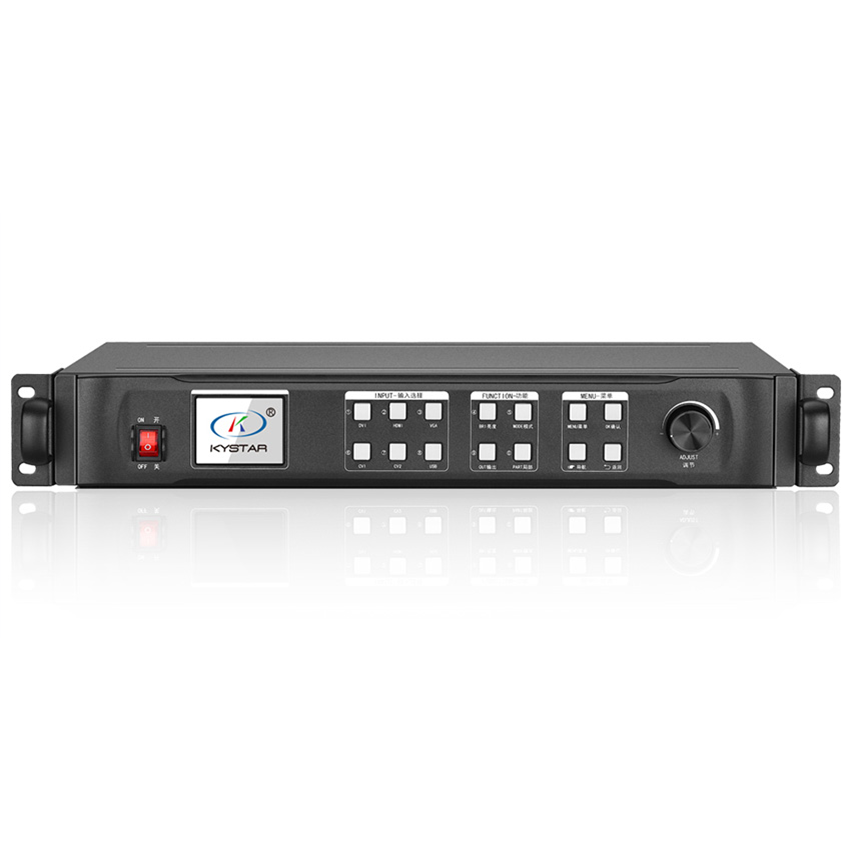

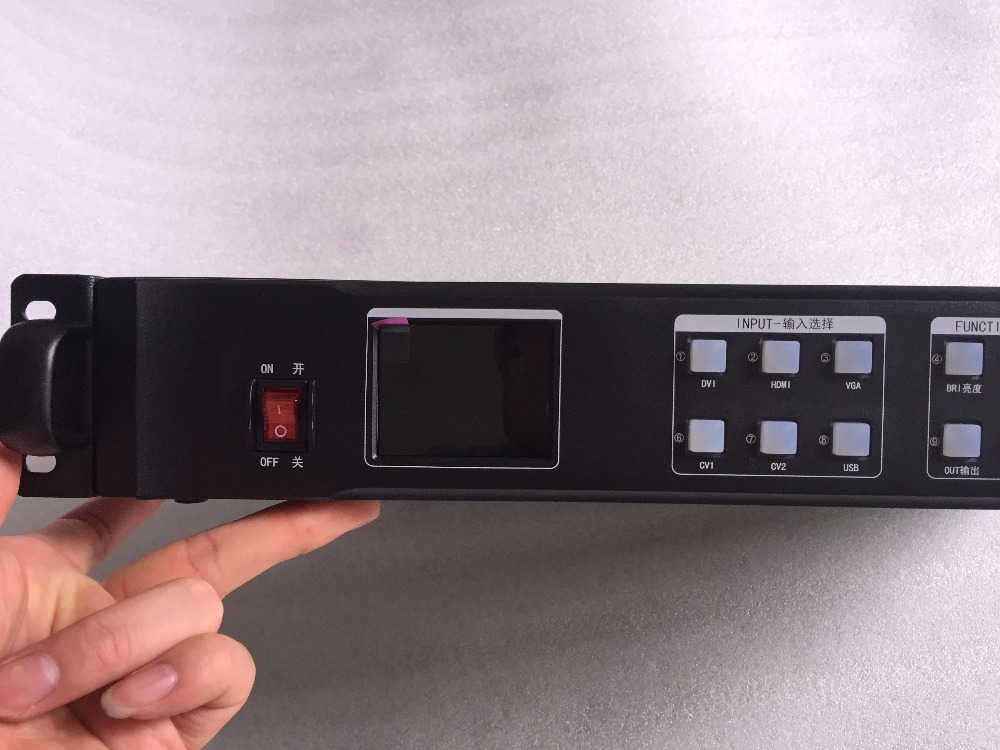

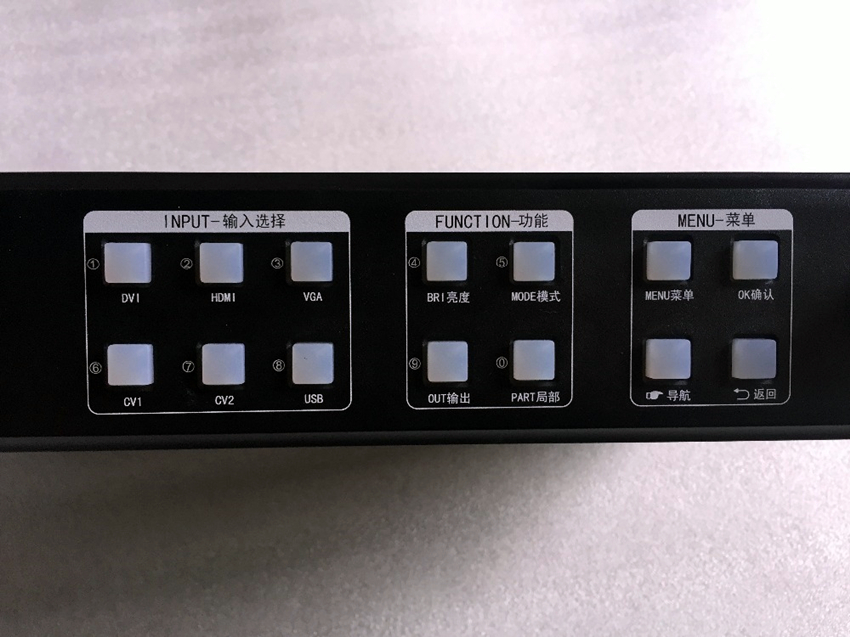

KS600 Video Processor Front Panel

(1) POWER:device switch,OFF-power off, ON-power on

(2) LCD:text display screen,display menu,parameters etc.
(3) DVI:digital signal key
(4) HDMI:HD multi-media key
(5) VGA:analog signal key
(6) BRI:Brightness setting
(7) MODE:User mode call
(8) MENU:Menu key
(9) OK:Confirm key,press it and enter next profile under navigation mode
(10) ADJUST:Increase or decrease key,press down to confirm
(11)/(12)CV1~2:CVBS key
(13) Reserved key:Number 8
(14) OUT:make switch between blank and normal screen output(For blue screen ,please use know)
(15) PART:part and full switch
(16) Wizard key:user navigation mode,work as step key when set data
(17) Arrow:return key

KS600 Video Processor Back Panel

(1) COM -1:Connect PC software
(2) COM-2-:For multi-device cascade
(3) HDMI:HDMI signal input port for laptop etc.
(4) DVI:DVI signal input port for PC etc.
(5) VGA: VGA signal input port for Laptop etc.
(6)(7) CV-1/2:CVBS interface for cameras etc.
(8)(9) DVI-OUT1/2:DVI output port for sending card etc.
(10) Power port: 220V power port
(11)(12) CARD-1/2--sending card slots,provide 5V power

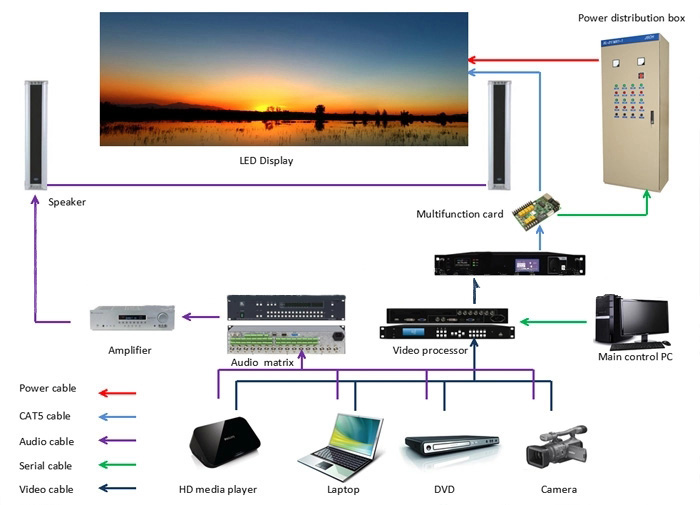

Conection

FAQ

Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and post-sale service?
A2:
1. For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/12. We can offer a whole complete solution for your project!
2. For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
3. Also, we can send engineers to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days after receiving the deposit.
Q4: What's the control system?
A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use HD control system
Q5: How can you ensure the led display product quality?
A5: We have 48 hours aging test and 72 hours whole screen consistency test to ensure the quality.

About Warranty
1. We provide 2 full years for all products except accessories.
2. Artificial damage or misused damage are out of warranty after receipt.
3. Defective item must be reported and returned with in the warranty period(in the original packaging if need exchange)
4. We will bear all the shipping cost if the products are not as advertised or damaged during transportation.
